Dectron Natatorium Dehumidification Systems
Koch Applied Solutions partners with Dectron to provide dehumidifiers for pool and natatorium applications. Dectron offers multiple dehumidifier technologies to suit a variety of application needs.

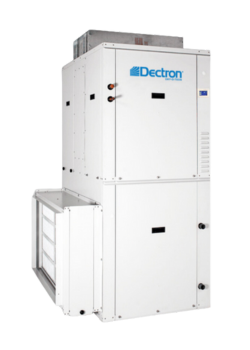

Dry-O-Tron DS Series
The Dry-O-Tron DS Series provides classic compressorized humidity control. Energy-efficient and exceptionally reliable, this series delivers optimal performance in the range of 12 to 120 lbs per hour of moisture removal and 600 to 8,000 CFM of air handling.
Offering comprehensive systems with a variety of options, the DS series is an ideal choice for homes, spas, hotels, schools, and public pools. The DS Series is also designed to integrate with the chloramine removal system to provide maximum performance benefits.
- Highlights
- Options
- Standard Features
- Downloads
Highlights
- Superior engineering and design
- Highest quality components
- Vision 2.0 Internet monitoring and control
- Touch screen SuperviseAire control systems
- Premium compressor protection and corrosion resistance
- Flexible designs with both vertical and horizontal configurations
- Flexible duct connections: top, bottom or side on most units
- Smallest footprint in the industry
- Mechanical vestibule outside the air stream on all units
- more efficient operation
- easy to service
- protects key components from moisture and chemicals in air stream
Options
- Pool water heating option
- Exhaust with heat recovery
- Purge mode with economizer
- Air conditioning – air-cooled or water-cooled, split or packaged
- Auxiliary air heating (electric, hot water, steam or gas)
- Motorized outdoor air on/off damper tied to built-in 7-day time-clock
- Outdoor air ventilation built-in, complete with filter and manually adjustable damper
- Upgrade to MERV-13 filters
Standard Features
- Quiet, powerful, efficient, reliable, energy-efficient
- Fully dipped coils for 100% corrosion protection
- Superior compressor protection
- Sight glasses on receivers for easy field charging of split systems
- Flexible supply and return air openings – multiple openings also possible
- Mirror configurations available for all models to suit ductwork requirements
- Best cabinets in the industry
- Outdoor packaged and split available, with air-cooled condenser or dry cooler
- Roof curb or slab compatible base design
- Motorized evaporator bypass damper for proper evaporator loading and maximum efficiencies
- MERV-8 filters
Downloads

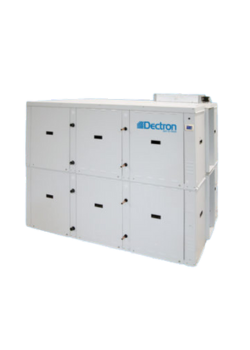

Dry-O-Tron DS-D Series
The Dry-O-Tron DS-D Series is a compact, two-stage system that provides scalable capacity and performance of two complete systems operated by a single, sophisticated control system.
Designed specifically for retrofit situations, the Dry-O-Tron DS-D Series delivers double capacity with a smaller footprint, along with the ability to split systems with just a wire harness to connect them – no refrigeration piping is affected.
- Highlights
- Options
- Standard Features
- Downloads
Highlights
- 48 to 186 lbs per hour of moisture removal and 2,600 to 14,400 CFM of air handling
- Models 04D through 07D can fit through a 32-inch doorway to deliver up to 80 lbs/hr of moisture removal capacity and 7,200 CFM of airflow.
- Can have a single phase 12 ton system
- Two-sided service access for tight installations
- Horizontal and vertical configurations
- Flexible supply air openings – multiple openings also possible
- Vision 2.0 Internet monitoring and control
- Touch screen SuperviseAire control systems
- Premium compressor protection and corrosion resistance
Options
- Pool water heating option
- Exhaust with heat recovery
- Purge mode with economizer
- Air conditioning – air-cooled or water-cooled, split or packaged
- Auxiliary air heating (electric, hot water, steam or gas)
- Motorized outdoor air on/off damper tied to built-in 7-day time-clock
- Outdoor air ventilation built-in, complete with filter and manually adjustable damper
- Upgrade to MERV-13 filters
Standard Features
- Quiet, powerful, efficient, reliable, energy-efficient
- Fully dipped coils for 100% corrosion protection
- Superior compressor protection
- Sight glasses on receivers for easy field charging of split systems
- Multiple compressor systems for staged control
- Flexible supply and return air openings – multiple openings also possible
- Mechanical vestibule outside the airstream makes service a breeze
- Mirror configurations available for all models to suit ductwork requirements
- Best cabinets in the industry
- Motorized evaporator bypass damper for proper evaporator loading and maximum efficiencies
- MERV-8 filters
Downloads

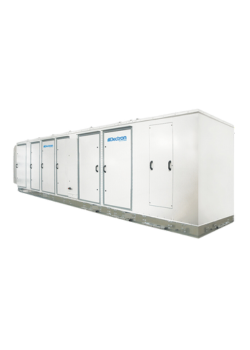

Dry-O-Tron LD/LEEDeR
In large pools, traditional dehumidifiers require a large refrigerant charge that is not just expensive but also leads to system migration challenges that can impact compressor reliability. The Dry-O-Tron LD/LEEDeR overcomes both of these issues through the use of a water/glycol mix as a secondary heat exchange fluid. This system also provides superior humidity control, exceptional reliability and lower operating costs, with as little as 1/6 the traditional refrigerant charge.
This unit is ideal for applications requiring from 110 to 765 lbs per hour of moisture removal or 6,000 CFM to 64,000 CFM of air handling. It is also designed to integrate with the Paddock Evacuator chloramine removal system.
- Highlights
- Options
- Standard Features
- Downloads
Highlights
- The ultimate in stable indoor air conditions through fully modulating reheat
- Up to 85% less refrigerant charge — completely factory sealed
- No on-site refrigeration work required to install
- Less cost to install and maintain
- Compliant with ASHRAE Standards 15 and 34
- No seasonal refrigerant and oil migration issues
- Decreased risk of compressor issues
- Increased performance
- Water-cooled design means outdoor heat exchanger can be located far from unit
- Heat exchanger can use PVC instead of copper
- 5% to 7% more energy-efficient than split-DX systems
- Vision 2.0 Internet monitoring and control
- Touch screen SuperviseAire control systems
- Premium corrosion resistance
- Mechanical vestibule outside the air stream on all units
- Better system performance as vestibule avoids leaching heat from compressor and blower motor into airstream
- Many service tasks can be performed without interrupting operation
- Protects key components including compressor and blower motor from harsh airstream
Options
- Pool water heating option
- Exhaust with heat recovery
- Purge mode with economizer
- Air conditioning via dry cooler (split or packaged) or chilled water
- Auxiliary air heating (electric, hot water, steam or gas)
- Motorized outdoor air on/off damper tied to built-in 7-day time-clock
- Outdoor air ventilation built-in, complete with filter and manually adjustable damper
- Upgrade to MERV-13 filters
Standard Features
- Quiet, powerful, efficient, reliable, energy-efficient
- Fully dipped coils for 100% corrosion protection
- Superior compressor protection
- Sight glasses on receivers for easy field charging of split systems
- Multiple compressor systems for staged control
- Flexible supply and return air openings – multiple openings also possible
- Mirror configurations available for all models to suit ductwork requirements
- Best cabinets in the industry
- Water-cooled design — reject heat to dry coolers or chilled water.
- Roof curb or slab compatible base design
- MERV-8 filters
Downloads

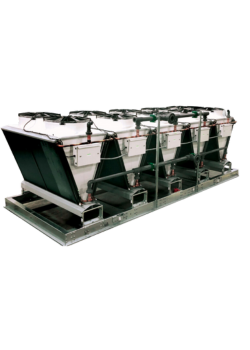

Dry-O-Tron Dry Coolers
Dectron outdoor dry coolers offer an optimal solution for medium and large-scale fluid-cooled heat rejection needs. These coolers deliver a superior heat rejection system that is available in capacities from 116 MBH to 2,300 MBH.
- Highlights
- Options
- Applications
- Downloads
Highlights
- Heat rejection capacity from 116 MBH to 2,300 MBH
- Fully-dipped coils:
- Ultimate corrosion protection and longevity with 3,000 hour salt spray rating
- Special coating makes the coils virtually self-cleaning
- EC motor fans controlled on 0–10vdc signal for maximum cooling performance with minimal energy consumption
- Very low maintenance motor
- Capable of higher pressure drops
- Variable fan speed based on leaving fluid temperature control
- Fan blades designed for quiet and efficient air movement
- The “V” configuration allows larger coils and higher airflows in the smallest possible footprint
- Lightweight and compact for easy handling and flexible installation
- Twin four-row coils with the latest tube and fin technology provide maximum fluid heat rejection and durability
- Very low internal fluid pressure drops further help reduce pump operating costs
- PVC ANSI raised flanges make fluid connections easy
- Fluid-cooled systems are inherently environmentally friendly because of their low refrigerant charge.
Options
- Packaged pump kits
- Unit mounted disconnects
- Factory-provided aquastat to generate signal that controls fan speed to leaving fluid temperature
- Available voltages are 208-230, 460, 575 VAC, three phase (some models also available in single phase)
Applications
Dectron dry coolers are ideal for any application involving the need for medium to large-scale fluid-cooled heat rejection.
- Facilities where full cooling is needed during low-ambient conditions, e.g. data centers
- Fluid-side economizer on chillers
- Supplementary A/C heat rejection on ground source heat pumps and geothermal wells
- Any medium to large-scale A/C application.
Downloads

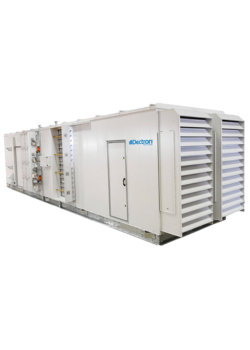

Dectron Hybrid Series
The Dectron Hybrid Series offers the efficiency of ventilation-based dehumidification for indoor pools, plus a refrigeration circuit to provide air conditioning as required. This system is most cost-effective in areas where outdoor air is dry for most of the year.
- Highlights
- Options
- Standard Features
- Downloads
Highlights
- Outdoor air-based dehumidification is a cost-effective alternative to mechanical dehumidification in many geographies across North America and can reduce energy consumption as the compressor is not used to dehumidify
- The simple design makes it easier to service and maintain; smaller refrigeration components cost less to operate and maintain
- Mechanical cooling keeps the space temperature comfortable by meeting the sensible load
- Advanced control algorithm precisely modulates outdoor air, using only the minimum necessary to maintain space humidity
- Direct-drive fan array with ECM motors means lower energy costs and no belts
- Heat recovery utilizes a glycol runaround loop, reducing the energy cost of preheating outdoor air
Options
- Sensible air cooling available from 20 to 128 tons or with a chilled water coil
- Packaged space heating – hot water, electric, or gas furnace
Standard Features
- Delivering airflow from 6,000 to 64,000 CFM with ECM driven fan arrays
- Reliable, frost-free heat recovery via glycol loop when needed most (to -29˚ F / -34˚ C)
- Fully modulating outside air up to 100%
- Easy-to-clean, fully-coated coils
- Room purge mode
