Electric Boilers

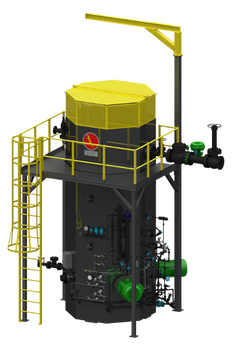

The HVJ electrode boiler ramps up from standby to full output in minutes or even seconds, providing virtually instant steam as needed. This means significantly reduced energy costs when using off-peak power.

• Capacities: 2,700 PPH to 140,000 PPH (80 BHP to 4,200 BHP) @ 99.5% efficiency
• Standard Model: ASME Section I, Part PEB
• Compliances: UL508A, ANSI/NFPA 79

This boiler is safe and environmentally friendly with an overall cost of ownership that is significantly less than most any fossil-fuel fired boilers.

• Lower installed capital cost
• Reduced insurance rates
• Fewer maintenance costs
• Lower energy and water treatment expense

Applications:

• Large Process Loads
• Chemical Plants
• Distilleries
• Aux Boilers for Power Plants
• Fast Acting Backup Steam

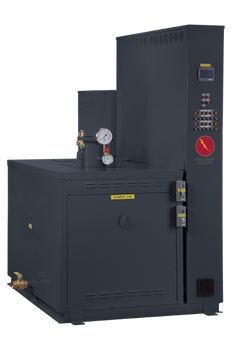

The model HW is almost the same as the PCW in terms of design and operation, but with a larger footprint to deliver higher heating capacity using a horizontal vessel configuration. Each of the heating elements is fitted with a 2-1/2” square mounting flange, installed in the head of the vessel for easy maintenance and limited downtime.

• Capacities: 1,638 MBH to 8,735 MBH (48 BHP to 260 BHP) @ 99.5% efficiency
• Standard Model: ASME Section IV “H” Stamp (160 PSI & 250oF)
• Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

Applications:

• Schools
• Manufacturing
• Prisons

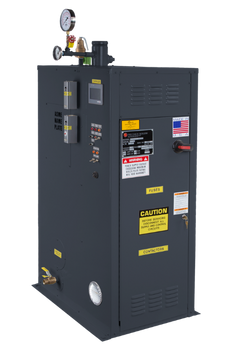

The compact footprint of the standard PCW electric hot water boiler is designed to fit through a 30” door so that it can fit where a fuel-fired boiler cannot. Each heating element is fitted with its own 2-1/2” square mounting flange, installed in the head of the vessel to provide ease of maintenance and minimal downtime.

• Capacities: 50 MBH to 1,500 MBH (1.5 BHP to 44 BHP) @ 99.5% efficiency
• Standard Model: ASME Section IV “H” Stamp (160 PSI & 250oF)
• Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

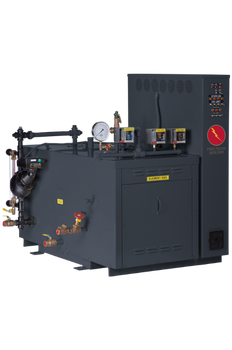

The large steam chest of the ST electric steam boiler delivers high quality, dry steam with minimum carryover. Each heating element is fitted with a 2-1/2” square mounting flange, individually installed in either one or both head(s) of the vessel for simple maintenance and reduced downtime.

• Capacities: 100 PPH to 10,000 PPH (10 BHP to 300 BHP) @ 99.5% efficiency
• Standard Model: ASME Section IV “H” Stamp (< 15 PSI) or Section I “S” Stamp (> 15psi)
• Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

Applications:

• Low pressure heating and humidification loads
• Craft Breweries and Distilleries
• Schools

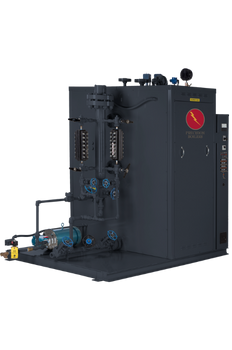

The STH electric high pressure steam boiler provides high quality process steam for applications that require higher pressure process steam (> 200 psi operating) in a compact footprint. Ideal for high pressure process steam installations, this electric boiler saves time and money, with no need for custom ventilation.

• Capacities: 100 PPH to 10,000 PPH (10 BHP to 300 BHP) @ 99.5% efficiency
• Standard Model: ASME Section I “S” Stamp (>15 PSI)
• Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

Applications:

• Food processing
• Clean in Place applications
• Fast acting backup steam
• Bottling plants
